Gaussian Splatting for Images

Learn the concepts behind Gaussian splatting and when/how to use it effectively.

What is Gaussian Splatting?

Core Idea: Represent images as a collection of 2D/3D Gaussians instead of pixels/voxels.

Why Gaussians?

Physical accuracy: Microscope PSF (point spread function) is Gaussian
Smoothness: Natural for scientific imaging (continuous underlying signal)
Compression: 100-1000 splats can represent 256×256 image (100× compression)
Denoising: Fitting process naturally smooths noise
Differentiable: Can optimize with gradient descent

Mathematical Foundation:

A 2D Gaussian splat is defined by:

\[\begin{split}G(x, y) = A \\cdot \\exp\\left(-\\frac{1}{2}[(x-\\mu_x)^2/\\sigma_x^2 + (y-\\mu_y)^2/\\sigma_y^2]\\right)\end{split}\]

Where:

(μ_x, μ_y) = center position
(σ_x, σ_y) = width (standard deviation)
A = amplitude (brightness)
Optional: rotation, color

When to Use Gaussian Splats

Ideal Use Cases:

✅ Microscopy images - PSF is already Gaussian, natural representation ✅ Sparse features - Images with distinct objects on dark background ✅ Compression - Need 10-100× smaller files ✅ Denoising - Smoothing while preserving features ✅ Continuous rendering - Fitted Gaussians draw at any zoom without voxel-interpolation artefacts

Not Recommended:

❌ Dense textures - Natural images (photos) better with JPEG/PNG ❌ Sharp edges - Text, CAD drawings need crisp boundaries ❌ Binary masks - Segmentations better as compressed arrays ❌ Real-time processing - Fitting is iterative (100-1000 iterations)

Note

Gaussian splatting requires optional dependencies (PyTorch, SciPy). This tutorial also uses scikit-image only for its sample image. Install them with:

pip install 'luxar[gsplats]' scikit-image

Basic Gaussian Splat Fitting

from luxar.gsplats import fit_gaussian_splats
import numpy as np
from skimage import data

# Load or create image
image = data.camera().astype(np.float32) / 255.0  # Normalize to [0, 1]

# Fit Gaussian splats
result = fit_gaussian_splats(
    image,
    n_iters=300,           # More iterations = better fit
    lr=0.01,               # Learning rate
    loss_type="l1",        # default; alternatives: "mse", "poisson"
    seed_method="edges",   # Edge-based initialization
)

# Results
print(f"Fitted {len(result.centers)} splats")
print(f"Final loss: {result.stats['final_loss']:.4f}")

# Reconstruction (render back to volume/image)
reconstructed = result.render_to_volume(shape=image.shape)

# Quality metrics
mse = np.mean((image - reconstructed) ** 2)
psnr = 10 * np.log10(1.0 / mse)
print(f"PSNR: {psnr:.2f} dB")

What’s Happening Internally:

Seed Generation: Find initial splat centers
- auto: Fast edges + grid combination (default, recommended)
- edges: Edge-based seeding via Sobel gradients (fast)
- decomposition: Scale-hierarchical detection (principled)
- grid: Uniform grid seeding for spatial coverage
- peaks: Local maxima detection
Initialization: Create splats with reasonable parameters
- Centers: From seeds
- Widths: Based on local feature size
- Amplitudes: From image intensity
- Colors: From image (if RGB)
Optimization: Gradient descent to minimize reconstruction error
- Render splats → Compare to target image → Compute loss
- Backpropagate → Update splat parameters
- Repeat for n_iters iterations
Finalization: Prune low-amplitude splats, pack results

Understanding Seed Generation Methods

Seed Selection is Critical

Why it matters: Poor initialization → poor fit, slow convergence

Edges Method (Fast, Default):

Uses Sobel gradients for edge detection and Poisson disk sampling
Finds features at boundaries and transitions
Best for: General-purpose microscopy images
Tradeoff: May miss interior features

result = fit_gaussian_splats(
    image,
    seed_method="edges",
    seeds=1000,            # Number of seeds to generate (int = count)
)

Auto Method (Recommended):

Combines edges + grid for balanced coverage
Fast and robust default
Best for: Most use cases

result = fit_gaussian_splats(
    image,
    seed_method="auto",    # Default — fast edges + grid combination
)

Decomposition Method (Principled):

Scale-hierarchical detection via image decomposition
Explicitly separates features by scale (coarse → fine)
Best for: Noisy data, hierarchical structures
Tradeoff: Slightly slower than edges method

result = fit_gaussian_splats(
    image,
    seed_method="decomposition",
)

Optimization Parameters

Learning Rate

What it is: Step size for gradient descent

# Too low: Slow convergence, may not reach optimum
result = fit_gaussian_splats(image, lr=0.001, n_iters=1000)  # Needs more iterations

# Good: Balanced convergence speed and stability
result = fit_gaussian_splats(image, lr=0.01, n_iters=300)  # Recommended

# Too high: Unstable, overshoots, diverges
result = fit_gaussian_splats(image, lr=0.1, n_iters=100)  # May fail!

Rule of thumb: Start with 0.01, increase if convergence is slow, decrease if training is unstable.

Loss Functions

L1 Loss (Mean Absolute Error):

\[\begin{split}L = \\frac{1}{N}\\sum |I_{target} - I_{rendered}|\end{split}\]

Robust to outliers
Good for noisy images
Recommended for most cases

MSE Loss (L2 / Mean Squared Error):

\[\begin{split}L = \\frac{1}{N}\\sum (I_{target} - I_{rendered})^2\end{split}\]

Penalizes large errors heavily
Good for clean images
Can be sensitive to outliers/noise

# L1 for noisy microscopy
result_l1 = fit_gaussian_splats(image, loss_type="l1")

# MSE (L2) for clean synthetic data
result_l2 = fit_gaussian_splats(image, loss_type="mse")

Advanced: Dynamic Operations

Concept: Relocate weak splats during optimization for better coverage

Motivation: A fixed splat budget can be poorly placed:

Weak splats linger in low-signal regions
High-residual regions stay under-resolved

Solution: Fixed-pool relocation

from luxar.gsplats import DynamicOpsConfig

result = fit_gaussian_splats(
    image,
    n_iters=500,
    enable_dynamic_ops=True,  # Note: True is already the default
    dynamic_config=DynamicOpsConfig(),  # Uses sensible defaults
)

How it works:

Dynamic operations perform fixed-pool relocation — weak splats (lowest amplitude) are relocated to high-residual regions. The total splat count remains fixed throughout training. This avoids the complexity of managing a changing number of splats while still allowing the optimization to adapt spatial coverage to where it is needed most.

Saving and Visualizing Results

from luxar.encoding import EncodingMode

# Fit splats
result = fit_gaussian_splats(image, n_iters=300)

# Save to zarr
result.save("fitted_splats.gsplats.zarr", encoding_mode=EncodingMode.MEMORY)

# Visualize in viewer (canonical one-liner)
# Terminal: luxar gsplat view fitted_splats.gsplats.zarr
# (alternative: luxar serve fitted_splats.gsplats.zarr --viewer)

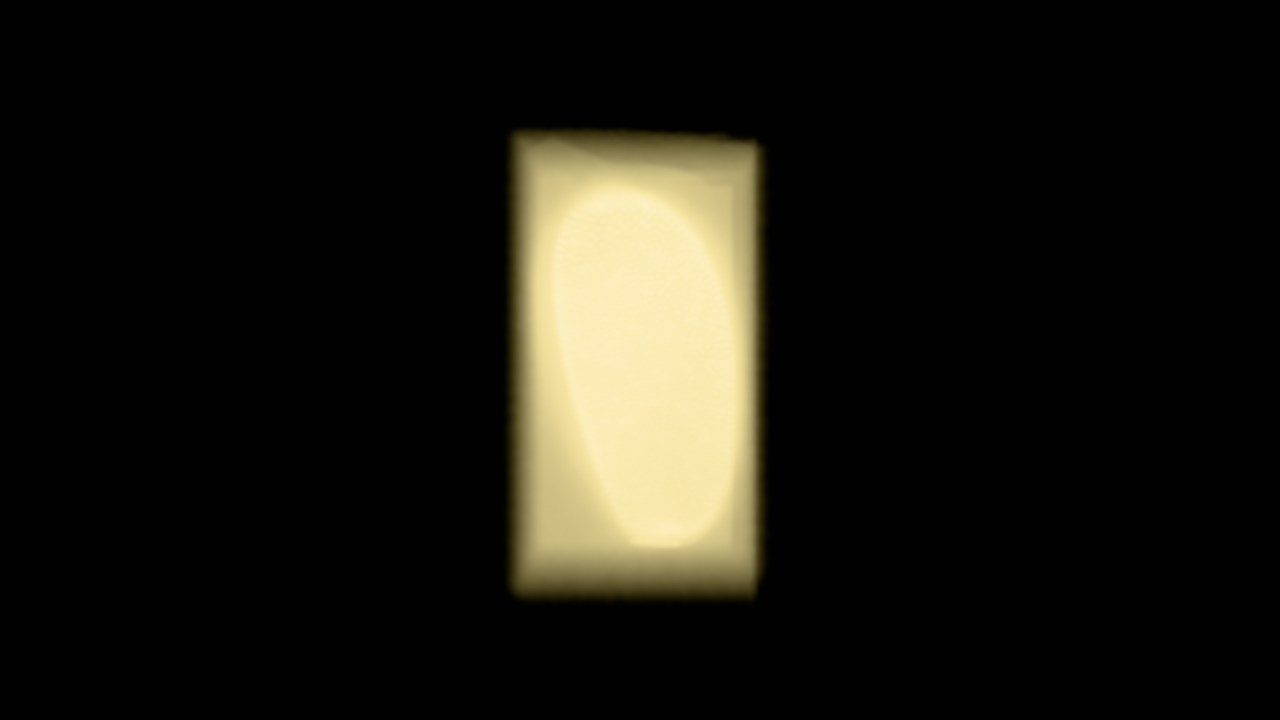

What you’ll see:

Each Gaussian rendered as a smooth blob
Overlapping splats create the image
Can navigate, inspect individual splats
Zoom in: See individual Gaussian kernels

Quality vs Compression Tradeoff

# High quality (more splats, more iterations)
result_hq = fit_gaussian_splats(
    image,
    seed_method="edges",
    n_iters=1000,
    lr=0.005,  # Smaller steps for fine-tuning
    # Result: 2000 splats, PSNR 35dB, 50× compression
)

# Balanced (recommended)
result_balanced = fit_gaussian_splats(
    image,
    n_iters=300,
    lr=0.01,
    # Result: 800 splats, PSNR 32dB, 100× compression
)

# High compression (fewer splats, faster)
result_compressed = fit_gaussian_splats(
    image,
    n_iters=100,
    lr=0.02,
    seed_method="edges",  # Faster seeding
    # Result: 200 splats, PSNR 28dB, 500× compression
)

Choosing the Right Tradeoff:

Interactive exploration: Balanced (fast load, good quality)
Publication figures: High quality (best reconstruction)
Network-limited: High compression (fast transfer)

Building Streaming LOD Ladders

A fitted .gsplats.zarr is a single flat container of N splats. For progressive streaming and view-dependent rendering, build a representation topology on top with luxar gsplat lod --recipe ... (the --recipe flag is required). Recipes are ordered by dataset scale:

flat — a single leaf (no LOD, no partition).
stream — same N splats, reordered so the prefix sum at any k splats is the best L² approximation of the full scene (streaming-friendly).
levels — synthesise M < N representative splats per coarser level (coarse→fine replacement levels; zoom across scales).
tiles — a spatial BSP partition where each tile carries its own streaming ladder (frustum-cull off-screen tiles; stream detail in view).
overview — an instant coarse overview level for the far view plus a tiles fine branch for close-up.
adaptive — spatial tiles where each tile picks its own detail level (per-tile coarse↔fine swap).

# Canonical end-to-end pipeline: cal → fit → lod --recipe
luxar gsplat cal volume.tiff cal.json --device cuda
luxar gsplat fit volume.tiff fitted.gsplats.zarr --seeds <K*>

# stream — a streaming prefix ladder
luxar gsplat lod fitted.gsplats.zarr scene.gsplats.zarr --recipe stream --n-lods 4

# tiles / overview — the large-data topologies
luxar gsplat lod fitted.gsplats.zarr part.gsplats.zarr --recipe tiles --max-elements 250000
luxar gsplat lod fitted.gsplats.zarr ms.gsplats.zarr --recipe overview --compression-factor 8

# levels — synthesised representative levels
luxar gsplat lod fitted.gsplats.zarr levels.gsplats.zarr --recipe levels -L 3 -K 4
luxar gsplat lod fitted.gsplats.zarr pyramid.gsplats.zarr --recipe levels -K 4 -L 3 --n-lods 4

Programmatically:

from luxar.gsplats import (
    make_additive_lod, make_substitutive_lod, make_lod_pyramid,
)

additive = make_additive_lod(data, n_lods=4, method="greedy")
# additive.additive_prefix(2) → prefix of additive sub-LODs 0+1+2

pyramid = make_substitutive_lod(data, compression_factor=4, levels=3)
# pyramid.n_substitutive == 4 (one GSplatData; finest at index 0, coarsest at 3)

matrix = make_lod_pyramid(
    data, compression_factor=4, levels=3, n_additive_lods=4,
)
# matrix.n_substitutive == 4; each level carries its own 4-step additive ladder

See packages/luxar/src/luxar/gsplats/lod/README.md for the full algorithm spec (greedy vs self-energy vs mass vs amplitude orderings; k-means+Lloyd vs hierarchical greedy clustering; breakpoint strategies; complexity).

Summary

Key Concepts:

Gaussian splats represent images as continuous functions
Seed generation determines initialization quality
Optimization is iterative gradient descent
Dynamic operations adapt to image complexity
Tradeoff: Quality vs compression vs speed

When it Shines:

Microscopy with Gaussian PSF
Sparse features on dark background
Need extreme compression
Want denoising + compression together

Next: Tutorial 4: Performance Optimization - Handle billion-point datasets efficiently.
