Luxar Viewer User Guide

The Luxar viewer is a browser-based application for exploring nD scientific scenes containing points, lines, Gaussian splats, and triangle meshes. It renders with WebGL by default and has an opt-in WebGPU path (see the renderer URL parameter below), and it loads data from Zarr stores served over HTTP.

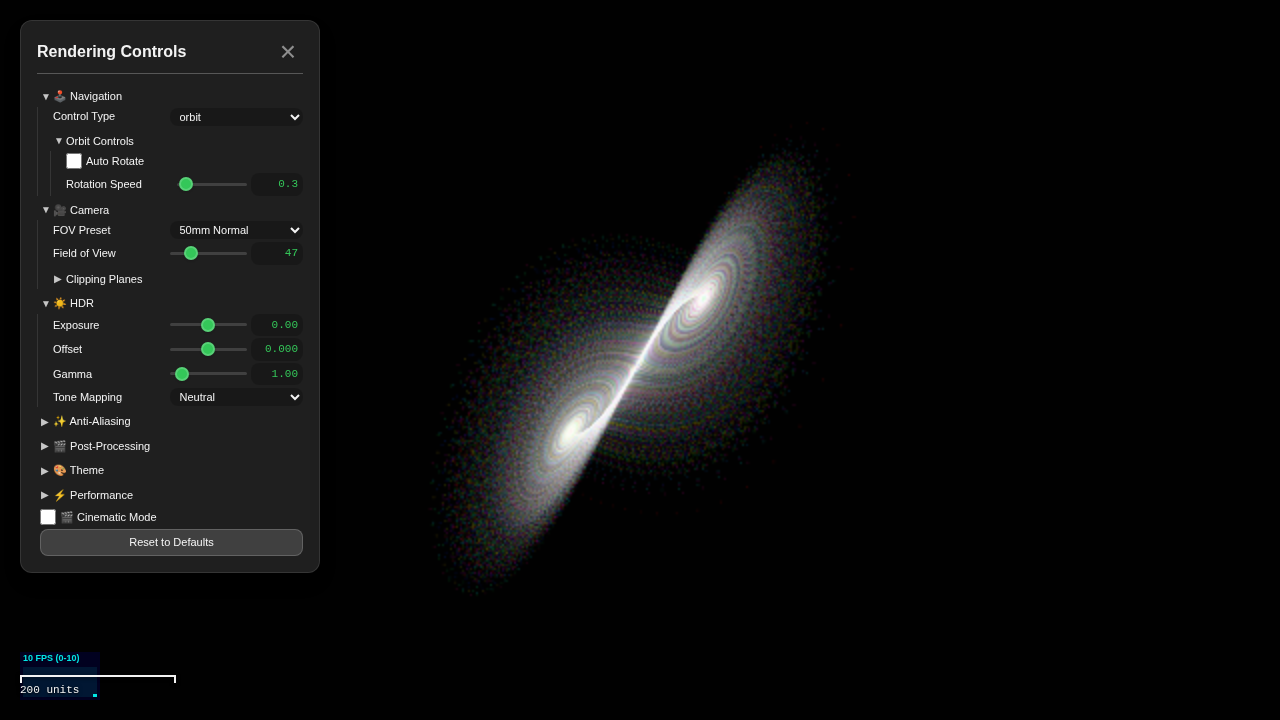

Luxar viewer interface overview

To follow along without installing anything, open a scene on the live demo gallery at demos.luxarviewer.dev. Every panel and shortcut described below is available there apart from the Dataset Browser, which requires a data server that can list directories. The same viewer is deployed standalone at luxarviewer.dev, which takes any reachable archive as ?src=<url>.

Launching the Viewer

There are three common ways to open the viewer:

# Serve a dataset and open the viewer in one step
luxar serve scene.luxar.zarr --viewer

# Browse the bundled demos, then run one
luxar demo
luxar demo run lorenz

# Export a self-contained offline viewer
luxar export scene.luxar.zarr -o my_export/ --open

You can also start the viewer development server directly:

cd packages/luxar-viewer
pnpm dev

Then open http://localhost:5173/?src=http://127.0.0.1:8000 in a browser, pointing src at a running Luxar data server. Port 8000 is the default for luxar serve; use your configured --port value if you changed it.

Both trailing-slash forms are accepted. Prefer data source URLs without a trailing slash as the canonical spelling used in examples and logs.

Opening your own data in the hosted viewer

There is a fourth way that needs no install at all. The viewer is deployed standalone at luxarviewer.dev and will open any scene it can reach over HTTP:

https://luxarviewer.dev/?src=https://example.org/path/to/scene.luxar.zarr

Nothing is uploaded. The browser fetches the store directly from wherever you host it, so the data never passes through luxarviewer.dev — which also means the scene is exactly as private, and as durable, as the host you put it on.

Your host must allow cross-origin reads

This is the one thing that reliably goes wrong. The page is served from luxarviewer.dev while the data comes from your host, so the browser treats every chunk request as cross-origin and your host has to opt in. What it needs depends on the store shape:

store	requirements
directory `.luxar.zarr`	`Access-Control-Allow-Origin`. Metadata and chunks are simple GETs, so byte ranges are not needed.
zipped `.zarr.zip`	the above, plus byte-range support: honour `Range`, allow the `Range` request header, and expose `Content-Range`, `Content-Length`, `Accept-Ranges` and `ETag`.

A plain static file host with CORS enabled is enough for a directory store.

What the failure looks like: the viewer loads but the scene stays empty, and the browser console shows requests blocked by CORS policy — not a 404. A 404 means the URL is wrong; a CORS error means the URL is right and the host is refusing to share it. Check the console before changing the URL.

Configuration for common hosts

Amazon S3 — bucket CORS configuration:

[{
  "AllowedOrigins": ["https://luxarviewer.dev"],
  "AllowedMethods": ["GET", "HEAD"],
  "AllowedHeaders": ["Range"],
  "ExposeHeaders": ["Content-Range", "Content-Length", "Accept-Ranges", "ETag"],
  "MaxAgeSeconds": 3600
}]

Cloudflare R2 takes the same JSON shape (Settings -> CORS policy). Google Cloud Storage takes the equivalent via gsutil cors set, with responseHeader carrying the exposed headers.

nginx:

location /scenes/ {
    add_header Access-Control-Allow-Origin "https://luxarviewer.dev" always;
    add_header Access-Control-Allow-Headers "Range" always;
    add_header Access-Control-Expose-Headers "Content-Range, Content-Length, Accept-Ranges, ETag" always;
    if ($request_method = OPTIONS) { return 204; }
}

Access-Control-Allow-Origin: * also works and is simpler if the data is public anyway; naming the origin only matters when you want to keep the store readable from your own pages but not from arbitrary ones. Note that neither choice makes the data private — a public bucket is public to anyone with the URL, CORS or not.

Directory listings and `.luxar-index.json`

The Dataset Browser (O) can list a hosted folder of scenes so a reader picks one instead of typing a URL. It tries, in order: a Zarr root document (the folder is itself a scene), a WebDAV PROPFIND, the JSON or HTML listing a server such as luxar serve, nginx or Apache emits, and finally a manifest you write by hand, .luxar-index.json, at the folder root. Object stores and static hosts (S3, R2, GitHub Pages) have no listing at all, so the manifest is how a folder on them becomes browsable:

{
  "entries": [
    { "name": "embryo.luxar.zarr", "type": "zarr", "size": 734003200, "modified": "2026-09-01T12:00:00Z" },
    { "name": "archive", "type": "directory" },
    { "name": "README.md", "type": "file" }
  ]
}

name is required and is the entry’s path segment relative to the folder. type is one of "zarr", "directory" or "file"; when omitted it is inferred — a .zarr or .zarr.zip name is a scene, "isDirectory": true a folder, anything else a file. size (bytes) and modified (any string) are optional and shown in the listing. The manifest is fetched as <folder>/.luxar-index.json, so a nested folder needs its own manifest at its own root, and the host has to serve the dotfile (some static hosts hide them by default). It is subject to the same CORS rules as the scenes it lists.

If you would rather not host anything, luxar export scene.luxar.zarr -o out/ writes a self-contained folder with the viewer and a stdlib-only serve.py; the recipient runs python serve.py (file:// cannot open the viewer directly).

See Distributing scenes for the wider picture on sharing scenes, and DEMO_SITE_RUNBOOK for how the demo corpus itself is hosted, including its CORS setup and failure modes.

Opening a Zipped Scene

The viewer can open a .luxar.zarr.zip scene without extracting it.

Produce an archive directly by naming it as the compiler output:

from luxar import LuxarZarrCompiler

with LuxarZarrCompiler("scene.luxar.zarr.zip") as compiler:
    ...

You can also package an existing store by giving luxar optimize a .zip destination:

luxar optimize scene.luxar.zarr scene.luxar.zarr.zip

Serve the directory containing the archive, then select it in the dataset browser:

luxar serve /path/to/scenes --viewer

You can also pass the archive URL directly to src, for example:

http://localhost:5173/?src=http://127.0.0.1:8000/scene.luxar.zarr.zip

The data server must support HTTP byte ranges and return 206 Partial Content. luxar serve provides the required behavior. Archives are read-only: commands that update an existing store in place refuse them, so write to a directory or new archive instead. The viewer has no browser local-file or drag-and-drop opening path for any scene format; serve the scene over HTTP instead.

Choose an archive for distribution, not speed: it turns a scene with potentially hundreds of thousands of hosted objects into one artifact to upload, download, or attach to a paper. On the benchmark fixture, a first archive load used about 39% more requests and 48–60% more bytes than the directory form, adding 1–7% to time to first render. A warm revisit needed only 4–6 requests and about 88 kB, so the extra cost is concentrated in the cold load.

URL Parameters

Append parameters to the viewer URL to control startup behavior.

Parameter	Type	Description
`src`	string	Zarr dataset URL or local path.
`theme`	string	Initial theme. One of: `light`, `dark`, `liquid-glass`, `frosted-glass`.
`title`	string	Browser tab title (`document.title`). Serve-family commands derive it from the dataset file name; a scene’s authored `viewer_config.title` overrides it. Dropped when you switch datasets in the viewer – the tab is then named after the dataset you switched to.
`control`	flag \| WebSocket URL	Attach this viewer to the serving app’s control hub. A URL selects an explicit hub and must be same-origin unless `controlAllowCrossOrigin` is present.
`controlToken`	string	Shared control-hub token, matching `luxar serve --control-token`. Query-string tokens are visible in browser history and are only a LAN convenience.
`controlAllowCrossOrigin`	flag	Permit an explicit `control` URL to cross the page origin. Without this flag, explicit control sockets are same-origin only; use it only with an authenticated or explicitly origin-allow-listed hub.
`panel`	module URL	On the `control.html` panel page, load an alternative same-origin control-panel module. Cross-origin modules are rejected.
`kiosk`	flag	Force kiosk mode on as a hard operator override. It can lock a scene but cannot unlock authored kiosk mode.
`debug`	flag	Enable the debug interface (developer use).
`noCache`	flag	Disable ALL caching tiers (S-cache + L0/L1/L2).
`noSliceCache`	flag	Disable only the SliceCache (per-slice decoded-geometry reuse); L0/L1/L2 stay on.
`noOpfs`	flag	Disable only the L2 persistent (OPFS) tier; L0/L1/S-cache stay on. For environments whose OPFS stalls — the deterministic sibling of the automatic circuit breaker.
`opfsReadConcurrency`	positive integer	Override the page-wide concurrent OPFS read cap (default 64) for diagnosis.
`cacheDebug`	flag	Enable cache debug logging to the browser console.
`clearCache`	flag	Clear all caches on startup.
`noPrefetch`	flag	Disable adjacent-chunk prefetching.
`prefetchDebug`	flag	Enable prefetch logging to the browser console.
`cacheStats`	flag	Auto-open the data-loading monitor expanded on the Cache tab (L0/L1/L2 hit rates).
`noLodFade`	flag	Disable the replacement-LOD cross-fade (on by default): adjacent levels then swap hard instead of blending across the coverage boundary.
`noLodEnergy`	flag	Disable streaming brightness compensation for additive ladders (on by default): a partial prefix then brightens up as chunks arrive instead of rendering at full-level brightness.
`lodFinest`	flag	Force the finest replacement LOD regardless of projected screen coverage (capture quality; the gallery harness appends it).
`lodBias`	positive number	Session-wide replacement-LOD threshold bias in screen-area units: `2` advances an occupancy-halved ladder by one level, `4` by two.
`depthSort`	`0` \| `false` \| `off`	Disable gsplat depth sorting (on by default); `normal`-mode splats then keep storage order, which pins deterministic output for visual runs.
`noDensityGuard`	flag	Disable the projected-density guard (per-node thinning + refinement rung cap on over-drawn nodes; on by default).
`densityCap`	positive number	Session-only override of the density guard’s blendable cap, in elements per drawing-buffer pixel (configured default 4).
`noBlendWarmup`	flag	Disable the WebGL blend-variant program warm-up (on by default): the first Layers-panel blend switch then pays the shader link cost on the click.
`noLinks`	flag	Disable element-authored navigation and the link items of the right-click menu; `Copy` and the `element-click` / `element-contextmenu` events still work. The switch for embedding scenes you did not author.
`bakeEnv`	flag	Capture the scene-derived environment cube map once the load settles and download it (driven by `luxar env bake`).
`probe`	`auto` \| `node:<path>` \| `x,y,z`	Probe position for `bakeEnv`; defaults to the scene’s configured probe or `auto`.
`envResolution`	integer 16-1024	Cube face size for `bakeEnv`; defaults to the scene’s configured resolution or 128.
`renderer`	`webgl` \| `webgpu`	Select the default GLSL WebGLRenderer path or opt into the WebGPURenderer + TSL path.
`webgpuForceWebgl`	flag	Diagnostic flag for `renderer=webgpu`: keep WebGPURenderer + TSL materials but force Three.js’s internal WebGL2 backend.
`perfTimestamp`	flag	Opt into GPU timestamp queries (WebGPU only, `timestamp-query` feature). Small runtime cost; intended for the perf bench.
`gpuBudgetMB`	number	Pin the GPU-geometry byte budget in MB, bypassing auto-sizing. `0` disables the budget (unbounded resident geometry).
`cacheBudgetMB`	number	Total in-memory cache pool (L0 + L1 + S-cache) in MB, for environments without `performance.memory` (Safari, WKWebView). Also supplies the implied non-cache remainder as a GPU-geometry/LOD residency signal; without `deviceMemory`, it replaces the 512 MB fallback and may raise or lower it, capped at 2 GB.
`dpr`	number	Pin a fixed device pixel ratio and disable adaptive DPR (clamped to [0.25, native DPR]). Overrides the high-DPR ceiling, so `?dpr=2` renders at 2 even with Allow High DPR off. For deterministic E2E/visual runs.
`input`	`touch` \| `mouse`	Force the session’s JS input profile: pointer flags, hover capability, touch points, and device tier. This changes device-class fallback budgets (`touch` only — `mouse` keeps the detected tier), primary-tip pen routing, the Safari gesture-canceller gate, and whether the help overlay lists its Touch section; `touch` additionally applies the mobile rendering budgets (adaptive-DPR floor and refresh ceiling, high-DPR cap, GPU-byte and element-texture ceilings, data-worker count) and skips the blend-variant program warm-up. Stylesheets and non-pen gesture routing still follow the real media features and `PointerEvent.pointerType`, so a faithful check needs device emulation or a real device. Detected by default, including an iPad whose Safari reports a macOS user agent.
`lineJoin`	`none` \| `miter`	Force the line join style for the session — applies only to `linePrimitive=screen-space`. The default capsule primitive partitions every interior joint along its bisector unconditionally, so this parameter (and each node’s authored `join` attribute) is a no-op there.
`linePrimitive`	`capsule` \| `screen-space`	Select the line rendering primitive (#1352). Default `capsule`: a gaussian-like profile of the 2D point-to-segment distance — stable round discs end-on, seamless bisector-partitioned joints, quad-class cost. `screen-space` is the classic quad — the lean path for very large line scenes. With no URL override, the `Settings → Advanced → Line primitive` policy decides: `Auto` (default) builds the capsule, except line nodes whose effective segment load (authored count × a rendered-width factor) reaches 2 M, which build the quad; `Capsule`/`Quad` force one primitive everywhere. `?linePrimitive=` overrides the policy for the session.

Flag parameters do not take a value; their presence activates the feature.

Example:

http://localhost:5173/?src=http://127.0.0.1:8000&theme=dark&noCache

Camera Controls

The viewer supports three camera control modes, cycled with the V key:

Orbit Mode (default)

Standard trackball camera for inspecting a scene from the outside.

Input	Action
Left-click + drag	Rotate around the target point (natural drag ON) / pan (OFF)
Right-click + drag	Pan the camera (natural drag ON) / rotate (OFF)
Middle-click + drag	Dolly (either setting)
Scroll wheel	Zoom in/out
Ctrl/Cmd + Scroll	Adjust field of view

The left/right drag mapping depends on the natural drag setting, which defaults to ON on macOS and OFF on other platforms: with natural drag, left-drag rotates and right-drag pans; without it, the mapping is inverted (left-drag pans, right-drag rotates).

Press F to recenter the camera so the entire scene fits in view.

Fly Mode

First-person controls for moving through the interior of a dataset.

Input	Action
W / A / S / D	Move forward / left / backward / right
Alt/Option + W / S	Move up / down
Q / E	Roll left / right
Arrow keys	Look around
Shift (held)	Speed boost
Right-click + drag	Look around
Left-click + drag	Strafe (screen-space translation)

Enable inertial mode (press I) to add momentum to fly movement so the camera coasts after releasing keys.

Ortho Mode

Orthographic projection for 2D viewing. The camera looks straight down one axis.

Input	Action
Left-click + drag	Pan
Scroll wheel	Zoom

Keyboard Shortcuts

General Navigation and Panels

Key	Action
H	Toggle help overlay
N	Toggle dimension sliders (for nD datasets)
O	Toggle dataset browser
P	Toggle performance stats (FPS, frame time)
R	Toggle rendering controls panel
B	Toggle scale bar
J	Toggle colormap legend
L	Toggle layers panel
U	Toggle overlays
T	Toggle recording panel
Escape	Close all open panels

The help overlay (H) and the dataset browser (O) both carry a filter field, and while one is on screen just typing narrows the list — no click needed. Their own toggle key is the one exception: pressing H in the help overlay (or O in the dataset browser) closes the panel rather than typing that letter, so start such a query with any other character — or with Shift+that letter, which types it. Matching is case-insensitive. In the dataset browser, ArrowDown moves from the panel into the listing. The browser hides its filter when there is nothing to narrow (while a directory loads, after an error, in an empty directory, and in the “enter a path manually” fallback shown for a server that cannot be listed); in the path field, click or Tab into it and type — it takes a URL, not a filter query. While either panel is open the other shortcuts are held for the panel and do not reach the scene behind it — including once you have tabbed or clicked into a field or a listing row. The exceptions are Escape (always closes the panel), Tab (cycles focus inside it) and the keys the panel itself advertises: its own toggle key, plus H in the dataset browser so the H Help chip in its banner works. Those pass through only while focus is still on the panel itself, which is why typing o into the dataset browser’s path field types an o instead of closing it.

Camera and View

Key	Action
F	Recenter camera (frame entire scene)
V	Cycle control mode: Orbit, Fly, Ortho
Space	Toggle fullscreen
Ctrl/Cmd + Scroll	Adjust field of view

Visual Modes

Key	Action
C	Toggle cinematic mode (bloom, detector noise, vignette, chromatic lens distortion)
I	Toggle inertial mode (fly controls momentum)

nD Dimension Navigation

Key	Action
1–9	Select navigable dimension by index
[	Step selected dimension backward
]	Step selected dimension forward
M	Cycle data loading monitor
G	Quick screenshot

Animation Playback

Key	Action
K	Play / pause animation
Home	Jump to dimension start
End	Jump to dimension end
Shift + Up	Increase animation speed
Shift + Down	Decrease animation speed

Fly Mode Movement

Key	Action
W / A / S / D	Move forward / left / backward / right
Alt/Option + W / S	Move up / down
Q / E	Roll left / right
Arrow keys	Look direction
Shift (held)	Speed boost

State Export

Key	Action
Ctrl+Shift+S	Export viewer state to clipboard as JSON

UI Panels

Toggle panels with their keyboard shortcuts or through the help overlay (H).

Help Overlay (H)

Displays the full list of keyboard shortcuts inside the viewer.

Rendering Controls (R)

Adjust visual parameters in real time:

Tone mapping – algorithm and exposure
Bloom – glow effect strength, radius, and threshold
Cinematic effects – bloom, vignette, detector noise, and chromatic lens distortion
Anti-aliasing – FXAA, MSAA, or SSAA
Detector noise – physics-based Poisson + Gaussian + FPN simulation

Changes persist to localStorage for the current scene.

Dimension Sliders (N)

For datasets with more than three spatial dimensions, this panel shows a slider for each non-displayed dimension. Drag a slider to move the slice position along that axis. See the nD Navigation section below.

Performance Monitor (P)

Displays one live metric at a time — click it (or press Enter/Space) to cycle between frames per second, frame time (ms), and a scrolling FPS graph. Useful for diagnosing performance on large scenes.

Recording Panel (T)

Controls for capturing image sequences or video from the viewer. Open the panel, configure frame rate and duration, and start recording.

Dataset Browser (O)

Browse and switch between available datasets served by the data server.

Scale Bar (B)

Displays a physical scale bar overlay when the scene defines spatial units (nm, um, mm, cm, m, etc.).

Colormap Legend (J)

Shows the active colormap and its value range when a colormap is applied to the scene.

Layers Panel (L)

Displays a list of all data nodes in the scene with toggles for visibility and opacity control.

Overlays (U)

Screen-space annotations (text, images, videos, HTML) positioned over the 3D canvas. Overlays are defined in the zarr scene by the Python API and rendered as HTML elements. Some overlays are dimension-aware: they appear or disappear as you navigate through dimensions. Press U to toggle all overlays on/off.

Video overlays (Scene.add_video) are muted, looping clips stored inside the scene; a clip plays only while its dimension filter matches, so a story scene with one turntable per slot decodes one video at a time. A VP9 WebM with an alpha channel is drawn transparent over the data in Chrome and Firefox; Safari cannot decode it and shows the clip’s poster image instead.

nD Navigation

Luxar supports datasets with an arbitrary number of dimensions. The viewer always displays three spatial dimensions at a time; additional dimensions are navigated by slicing.

How It Works

Displayed dimensions are rendered in 3D (typically x, y, z).
Non-displayed dimensions each have a slice position and a tolerance. Geometry is visible when its coordinate along a non-displayed dimension falls within the tolerance window around the current slice position.

Using Sliders

Press N to open the dimension slider panel. Drag any slider to move the slice position for that dimension.

Tips for nD Data

If the viewer shows zero visible points after loading, the initial slice position may be at a location with no data. Navigate along non-displayed dimensions to find populated slices.
For 4D time-lapse data, use animation playback (see next section) to step through time automatically.

Performance limit: 16 dimensions

The viewer’s WASM-accelerated kernels (spatial queries, effective-radius slicing, GSplat attenuation) are bounded to 16 dimensions. Scenes with more dimensions still load and render correctly via a TypeScript fallback, but interactive performance can drop noticeably on large point or splat collections. For best performance on high-dim source data, pre-slice or pre-aggregate before export. See LUXAR_ZARR_FORMAT.md → Viewer Constraints and Performance for details.

Mesh nodes slice by whole triangles

Every rule above describes per-element visibility, which is what Points, Lines and GSplats do. A Mesh is different: it draws a triangle only when all three of its vertices fall inside the slice window, so a cut surface has a ragged, triangle-following edge rather than a clean planar one, and on a continuous hidden dimension it shows a slab of finite thickness rather than an exact cross-section. A coarse mesh with a narrow window can drop whole regions.

Discrete hidden dimensions — time, channel, anything categorical, which is the usual case for a mesh — are unaffected: a timepoint either matches or it does not. For the continuous case the slab half-width is authored per node via slab_tolerance (the slab spans slice ± step × slab_tolerance). See LUXAR_ZARR_FORMAT.md → nD slicing: whole-triangle cull.

Animation Playback

When a dimension is marked as animatable (for example, time), the viewer can play through its range automatically.

Action	Key
Play / pause	K
Jump to start	Home
Jump to end	End
Speed up	Shift + Up
Slow down	Shift + Down

Animation loops according to the configured loop mode: once (stop at end), loop (restart from beginning), or bounce (reverse direction at each end). The loop mode and direction can be set through ViewerConfig in Python (see below).

The Detail section of the same menu decides how deep each frame’s additive ladder is loaded while a dimension plays or is scrubbed. Auto (the default) pins every ladder at the first rung whose energy stamp reaches the viewer’s threshold, so a heavy time-lapse reads consistently and the frame rate adapts to the data; a rung count or All pins the depth explicitly; Fast streams whatever is resident within each tick (quick cadence, quality varies from frame to frame). Scenes can author the default with ViewerConfig(playback_lod_depth=...) — an integer rung count, "all", "auto" or "fast".

Screenshots and Recording

Press G to capture a single screenshot immediately.
Press T to open the recording panel for multi-frame capture.
Press Ctrl+Shift+S to export the full viewer state (camera, settings, dimension positions) to the clipboard as JSON. This JSON can be loaded back via ViewerConfig.from_file() in Python.

Configuring the Viewer from Python

Set viewer defaults at scene-creation time by passing a ViewerConfig to the scene. These values are stored in the Zarr archive and applied when the viewer loads the dataset.

import luxar

vc = luxar.ViewerConfig(
    title="Rivers of Earth",  # names the browser tab (document.title)
    theme="dark",
    camera=luxar.CameraConfig(
        position=(0, 5, 20),
        target=(0, 0, 0),
        fov=50,
    ),
    bloom_enabled=True,
    bloom_strength=0.4,
    control_type="orbit",
    auto_rotate=True,
    # Turntable rate in REVOLUTIONS PER MINUTE: a full turn takes
    # 60 / auto_rotate_speed seconds, so 0.25 is one turn every four minutes
    # and 3.0 is one every twenty seconds. (The viewer's Navigation popover
    # shows this as "Rotation Period (s)" — the same setting asked the other
    # way round, so it reads in the same unit as the dolly period below.)
    auto_rotate_speed=0.25,
    # Turntable axis. Either a CAMERA-frame axis — "vertical" (screen-up, the
    # default), "horizontal" (screen-right — the scene tumbles over the top),
    # "view" (the view direction — a pure roll, the camera never moves) — or a
    # fixed scene axis: "world-x" / "world-y" / "world-z".
    #
    # Which family you want depends on the framing. A camera-frame turntable
    # always looks the same on screen whatever the scene's orientation, but
    # when the camera looks DOWN at a subject (most composed openings do) the
    # subject's own axis precesses: a spin plus a wobble. A world axis is the
    # classic turntable — pick the one matching the subject's up and it spins
    # about its own axis at any elevation. The two coincide exactly when the
    # camera is level, so switching frames there changes nothing.
    #
    # One caveat on "view" — and on a world axis as it nears the view
    # direction: the LOD selector measures a node by the axis-aligned screen
    # box of its projected bounds, which is not roll-invariant — a square
    # footprint swings about 2x in area at 45°, a full level of the halving
    # ladder. A rolling scene parked near a switch threshold will therefore
    # breathe between levels (and a turntable recording pays extra LOD-settle
    # ticks per frame). Hysteresis softens it. "vertical" and "horizontal"
    # change the view legitimately and are not affected in the same way. A
    # world axis is affected to the extent that it approaches the view
    # direction. At exact alignment the turntable is a pure roll with a
    # stationary camera.
    auto_rotate_axis="vertical",
    # Auto-dolly: the turntable's radial sibling. Instead of going AROUND the
    # subject the camera breathes toward and away from it on a sine — the
    # equivalent of turning the mousewheel back and forth. Combined with
    # auto_rotate it gives the slow approach-and-retreat hero shot; on its own
    # the parallax is a depth cue a still cannot give.
    #
    # The amplitude is a PERCENT of the viewing distance, so it means the same
    # thing at any scene scale: 15 swings between d/1.15 and d x 1.15. The
    # slider goes to 95 (nearly halving and doubling the distance), and a big
    # swing is a legitimate choice — but it is not free, and the cost is not
    # linear. Screen area goes as 1/d^2, so the swing moves projected area by
    # (1 + a)^4 between the far and near extremes: 1.75x at 15%, 5.06x at
    # 50%, 14.46x at 95%. The LOD ladder answers by loading finer levels at
    # the near extreme, and THAT is what scales. Measured over one 3 s cycle
    # on a 100-group demo:
    #
    #     amplitude   area swing   resident elements   LOD transitions
    #        15%         1.75x           118k                161
    #        50%         5.06x           526k                392
    #        95%        14.46x          2.29M                520
    #
    # A 6x bigger swing costs a 19x resident set. Locally, with a warm cache,
    # that is nearly free (144 -> 129 fps on an M-series laptop). On a hosted
    # scene, where cost is requests rather than bytes, it is not — every cycle
    # re-walks the ladder and anything the cache has evicted is re-fetched.
    # Nothing about a large amplitude is unsafe: the distance clamps sit orders
    # of magnitude away (a scene framed at 176k units clamps at 327). Choose by
    # what the motion is worth, not by fear of it.
    #
    # The user keeps control of zoom while it runs: both the wheel and the
    # dolly only ever multiply the distance, so a scroll moves the centre the
    # camera is breathing around rather than fighting the animation. Switching
    # it off leaves the camera where the swing had reached, and re-enabling
    # resumes from there — the same way stopping the turntable leaves the scene
    # at its current angle. It also works in ortho mode, where it breathes the
    # orthographic zoom instead.
    auto_dolly=False,
    auto_dolly_amplitude_percent=15,
    auto_dolly_period=10,  # seconds per full in-and-out cycle
)

dims = luxar.Dimensions.default_3d()

with luxar.LuxarZarrCompiler("output.luxar.zarr") as compiler:
    scene = compiler.create_scene(dimensions=dims, viewer_config=vc)
    # ... add geometry to scene

Loading a Viewer Snapshot

Export a viewer state with Ctrl+Shift+S in the browser, save the JSON to a file, then reload it in Python:

vc = luxar.ViewerConfig.from_file("my_view.json")
vc.bloom_strength = 0.8  # tweak as needed

dims = luxar.Dimensions.default_3d()

with luxar.LuxarZarrCompiler("output.luxar.zarr") as compiler:
    scene = compiler.create_scene(dimensions=dims, viewer_config=vc)
    # ... add geometry to scene

Priority Chain

Settings are resolved with the following priority (highest first):

localStorage overrides – per-scene user changes made in the browser, except that an authored camera position is restored with its resolved scene FOV
viewer_config – defaults stored in the Zarr file
Built-in defaults – the viewer’s own defaults

The browser tab title has its own two-step chain: an authored viewer_config.title wins; otherwise the viewer uses the ?title= URL parameter, which serve-family commands (luxar serve --viewer, luxar demo run) derive from the dataset’s file name — so every tab names the scene it shows instead of a row of identical “Luxar Player” tabs. Switching datasets inside the viewer retitles the tab after the dataset you switched to (both of the other two name the scene you just left). With no ?title= at all, the viewer derives the name from the store ?src= points at — which is what keeps a reloaded or shared post-switch link named.

Available Configuration Categories

Category	Example fields
Scene identity	`title` (browser tab title)
Camera	`position`, `target`, `up`, `fov`, `fov_preset`, `near`, `far`, `target_node`, `zoom` (ortho only)
Theme	`theme` (`dark`, `light`, `frosted-glass`, `liquid-glass`)
Tone mapping	`tone_mapping`, `exposure`, `global_offset`, `global_gamma`
Bloom	`bloom_enabled`, `bloom_strength`, `bloom_radius`, `bloom_threshold`
Controls	`control_type`, `auto_rotate`, `auto_rotate_speed`, `auto_rotate_axis`, `auto_dolly`, `auto_dolly_amplitude_percent`, `auto_dolly_period`
Cinematic	`cinematic_mode`, `vignette_enabled`, `chromatic_lens_distortion_enabled`
Detector noise	`detector_noise_enabled`, `detector_noise_readout_sigma`, `detector_noise_photon_gain`
Anti-aliasing	`fxaa_enabled`, `msaa_enabled`, `ssaa_enabled`
Performance	`adaptive_dpr_enabled`, `allow_high_dpr`
Fly controls	`fly_movement_speed`, `fly_rotation_speed`, `fly_inertial_mode`, `fly_damping`
UI visibility	`ui.show_help`, `ui.show_rendering_controls`, `ui.show_dimensions`, `ui.show_performance_monitor`, `ui.show_scale_bar`, `ui.show_layers`
Dimensions	`dimensions.current_step`, `dimensions.selected_dimension`
Animation	`animation` (per-dimension: `playing`, `target_fps`, `loop`, `direction`, `step_size`) — a scene with `playing: true` on a dimension starts that dimension animating on load, from wherever `dimensions.current_step` put it
Story waypoints	`waypoints` (list of `Waypoint`: `when`, `camera`, `duration_ms`, `easing`, `reveal`, `rendering`) — camera poses bound to hidden-dimension positions; see below

Set allow_high_dpr=True if your scene is line-dominated — a river network, a tractogram, a wiring diagram. Phones and tablets cap this setting at DPR 2; laptops and desktops use the panel’s native DPR. The viewer renders at CSS resolution by default even on a Retina display, because a 2x panel costs 4x the fragment work and soft-edged emissive geometry barely rewards it. Measured against DPR 2, brightness and coverage hold to within 2.5% on every geometry type and the whole visible effect is a 15-35% loss of fine detail: on points and splats that is mild softening, but on dense thin lines the individual strands stop being separable. Line scenes are also the cheapest place to spend the pixels, because they are not fill-bound — a trajectory scene measured 1.06-1.17x faster at DPR 1 against 2.6-2.7x for a point cloud, so you buy the detail back for almost no frame time. Leave it off for points, gsplats and mesh unless a particular scene proves otherwise.

Setting cinematic_mode=True expands the whole cinematic preset (ACES tone mapping, a subtle wide bloom, detector noise, vignette, and the 35 mm chromatic lens + FOV) for every field the scene does not set itself — so you can enable the look and still override, say, bloom_strength on top of it. Note that the preset also widens the camera to the 35 mm field of view (63°), which is applied before automatic framing so the fitted subject occupancy matches that lens. Pin camera.fov (or camera.fov_preset) only when composing an explicit camera pose for a specific lens; the preset then leaves the authored FOV alone but still applies its 35 mm distortion to that different framing. The bundled demos instead leave the FOV unpinned and compose their authored positions for 63°. A returning visitor’s stored FOV still takes precedence for auto-framed scenes; an authored camera position is always restored with the resolved scene FOV it was composed for.

Story waypoints: a camera pose per hidden-dimension position

A scene can tell a story. Give it a hidden discrete “story” dimension, author the colours per story value in the data, caption each value with overlays that carry a visible_range, and bind the camera with waypoints:

import luxar
from luxar import CameraConfig, Waypoint

vc = luxar.ViewerConfig(
    waypoints=[
        # Story 0: the overview.
        Waypoint(when={"story": 0}, camera=CameraConfig(position=(0, 0, 40))),
        # Story 1, but only while time is in [10, 20]: fly to the cluster
        # and brighten the exposure on arrival.
        Waypoint(
            when={"story": 1, "time": (10, 20)},
            camera=CameraConfig(target_node="cluster_7", position=(12, 3, 8)),
            duration_ms=2500,
            rendering={"exposure": 0.5},
        ),
        # Story 1 anywhere else in time: re-aim only (position is kept).
        Waypoint(when={"story": 1}, camera=CameraConfig(target_node="cluster_7")),
    ]
)

The when clause uses the overlay visible_range rule: every named dimension must match, an exact value matches within ±0.5 of the current step, a (min, max) range matches inclusively, and the first matching waypoint in list order wins — so put specific clauses before broad ones. Fields left out of a waypoint’s camera keep the live camera’s value at flight time, which is how a waypoint can re-aim without moving.

The viewer acts on a change of matched waypoint, not on every slider tick. At load it snaps to whichever waypoint matches the opening dimension state (ahead of the plain camera block). Afterwards stepping the story dimension — the [ / ] keys, the slider, or an external controller — flies to the new waypoint with its own duration_ms (default 1500; 0 snaps) and easing ("ease-in-out" or "linear"); moves that stay inside the same waypoint’s ranges do nothing, and leaving every waypoint leaves the camera where it is. Any mouse, touch or key input during a flight cancels it where it is. The optional reveal="on_arrival" holds newly matching dimension-bound overlays until that flight resolves; the default "immediate" shows them as the dimension changes. The optional rendering block takes the same snake_case keys as ViewerConfig itself and is applied on arrival through the same validated path.

Waypoints compose with the orbit turntable: while auto-rotate is on, a story step keeps the current viewing direction and only moves the point the camera spins around (and how far away it sits), so the spin never pauses and the authored orientation is ignored. In ortho mode camera distance changes nothing, so author CameraConfig(zoom=...) to frame a cluster tighter. In fly mode a waypoint moves and aims the camera just the same; flying with the keyboard during a flight cancels it.

For a complete worked example — story dimension, dimmed backdrop, per-story highlight layers, fact panels and waypoints — run luxar demo run esm3_protein_stories (it reads the ESM3 landscape demo’s cache).

Sound

A scene may carry sound nodes (scene.add_sound, see docs/guides/specs/SOUND_SPEC.md): an ambient bed, a narration bound to a story step, or a spatial source that gets louder as the camera approaches. Their audibility is the same hidden-dimension slab rule that decides which points are visible, so scrubbing a story dimension starts and stops the clips that belong to each step. When a loaded scene has sound nodes a Sound button appears in the rail: click mutes everything (persisted across scenes), while right-click or a hold opens the mixer (master gain, the ambient / voice / effects buses, equal-power vs HRTF panning). The voice bus ducks the ambient bed while a narration plays. Scene defaults live in ViewerConfig(audio=AudioConfig(...)), and a controller drives the same knobs through setAudio(), playSound(), stopSound() and getViewerState().audio.

Sound nodes authored with layer=True appear in the Layers panel with a sound badge: the eye mutes that node (a parent group’s eye silences every sound under it), an inline slider sets its gain, and the name’s tooltip shows the clip’s licence, author and source. Narration authored with trigger="on_arrive" starts when a story flight lands (a flight you cut short still counts as arrived; one superseded by the next story does not). A node with attach_to follows another node’s centre, and an ambisonic="foa" bed is a sound field that stays fixed to the world as you turn the camera. The Recording panel’s “Include Audio” option (Advanced) records what you hear into real-time videos; frame-by-frame captures stay silent.

Browsers refuse to start audio without a gesture on the page. In a regular tab the viewer shows a one-time Tap to enable sound overlay that the first click or key dismisses. For an unattended kiosk launch Chrome with the autoplay policy relaxed so the context starts on load and the gate never appears:

google-chrome --kiosk --autoplay-policy=no-user-gesture-required "http://host:5173/?src=…"

See luxar.ViewerConfig docstring for the full field list with types and valid ranges.

Tips and Troubleshooting

Viewer shows a blank scene or zero points

For nD datasets, the initial slice position may be empty. Press N to open dimension sliders and navigate to a populated region.
Verify that src points at the dataset root rather than its parent listing.

Performance is poor with large datasets

Press P to check FPS and identify bottlenecks.
Reduce anti-aliasing quality (disable SSAA, switch to FXAA).
Disable bloom and lower anti-aliasing quality in the rendering panel.
Adaptive resolution automatically lowers pixel density during interaction.
Check Allow High DPR in the Performance panel is off (it is by default). On a HiDPI display it costs four times the pixels, which is rarely worth it for points and splats. Conversely, if a scene of thin lines looks mushy rather than slow, turning it ON is usually cheap — line scenes are not fill-bound.

Camera feels stuck or wrong

Press F to recenter the camera on the scene bounding box.
Press V to cycle to a different control mode.
If fly mode momentum is disorienting, press I to toggle inertial mode off.

Caching issues

Add ?clearCache to the URL to wipe all cached data on startup.
Add ?noCache to disable caching entirely for debugging.

Exported state does not restore correctly

Ensure you use ViewerConfig.from_file() and not manual JSON parsing.
The JSON format is viewer-version-specific; re-export if the viewer has been updated.

Data fails to load (404 errors)

Check that luxar serve is running and the port matches the src URL.
Verify that the dataset metadata files are reachable from the src URL.
Verify the Zarr archive is complete (luxar info <path> can help).

Luxar Viewer User Guide

Launching the Viewer

Opening your own data in the hosted viewer

Your host must allow cross-origin reads

Configuration for common hosts

Directory listings and .luxar-index.json

Opening a Zipped Scene

URL Parameters

Camera Controls

Orbit Mode (default)

Fly Mode

Ortho Mode

Keyboard Shortcuts

General Navigation and Panels

Camera and View

Visual Modes

nD Dimension Navigation

Animation Playback

Fly Mode Movement

State Export

UI Panels

Help Overlay (H)

Rendering Controls (R)

Dimension Sliders (N)

Performance Monitor (P)

Recording Panel (T)

Dataset Browser (O)

Scale Bar (B)

Colormap Legend (J)

Layers Panel (L)

Overlays (U)

nD Navigation

How It Works

Using Keyboard Navigation

Using Sliders

Tips for nD Data

Performance limit: 16 dimensions

Mesh nodes slice by whole triangles

Animation Playback

Screenshots and Recording

Configuring the Viewer from Python

Loading a Viewer Snapshot

Priority Chain

Available Configuration Categories

Story waypoints: a camera pose per hidden-dimension position

Sound

Tips and Troubleshooting

Directory listings and `.luxar-index.json`
